Brand:    Inventis
MPN:    Multiple Languages incl. Spanish
Model:    Piccolo Plus
Country/Region of Manufacture:    Italy

spac:
Piccolo is a portable diagnostic audiometer, offering air, and bone audiometry functions. Piccolo can be
controlled from a computer running Windows and using Daisy Maestro (Software), manage all your patients records and either print them out or burn a disc for a patient to take to another Doctor..
The Piccolos lightweight compact design, is a powerful Audiometer, with user-friendly software, and Noah connectivity combine to make Piccolo the ideal choice for professionals on the move.
The Maestro Module features a complete patient database,
allowing you to print professional reports and export data.
COMPUTER CONTROL
Connect Piccolo to the USB port of your computer and you
are ready to go. There is no need to install a driver.
You can control Piccolo through the Maestro module's amazingly user-friendly interface.
INCREDIBLY PORTABLE
Piccolo is extremely light (less than 1 lb.), boasts a
very small footprint, and does not even need a power supply
when controlled through the computer. It is therefore the
perfect solution for anybody seeking a top quality portable
audiometer.

Mechanics
Size (WxDxH): 16 x 16 x 3 cm / 6.3 x 6.3 x 1.2 in.
Weight: 300 g/ 10.6 oz.
Size (WxDxH): 40 x 30 x 18 cm / 15.8 x 11.8 x 7.1 in
Applicable standards
Pure tone audiometry: EN 60645-1, Type 3

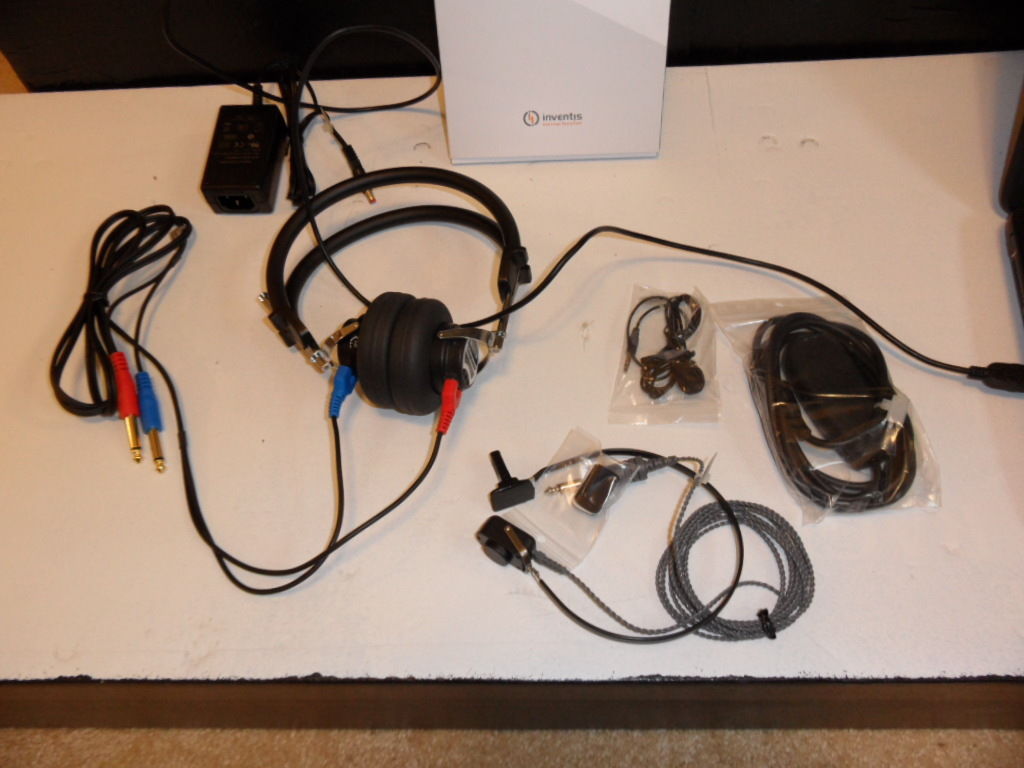

Included parts
TDH-39 supra-aural headphones
B71 bone vibrator
Patient response switch
Clip-on microphone for patient-to-operator
communication
Medical grade power supply
USB connection cable
Daisy Mgmt.Software
Noah and Maestro software Module
User manual
Utility CD
Multiple Languages incl. Spanish
Certificate of Calibration

When controlled through the computer (using Inventis
Daisy or the dedicated Noah module). Piccolo is
connected to it via USB.
Classification
Pure tone audiometer (EN 60645-1)
Piccolo Plus -Type 3
Available signals
Stimulus: pure tone, warble tone
Masking: NBN, WN, SN
2 external inputs
Signals specifications
Attenuator step: 5 dB
Presentation: Continuous, Pulsed (0.5,1 and 2 Hz)
Warble: 5 Hz sin wave modulating signal
Available output and transducers
AC: TDH-39 headphones, ER-3A or ER-5A earphones
BC: B-71 bone vibrator
Pure tone: frequencies and maximum levels (dB
Freq.
(Hz) TDH39 AC
ER-3A AC
ER-5A BC
125 80 90 90 -
250 100 105 100 45
500 110 110 110 65
750 115 115 120 70
1.000 120 120 120 75
1.500 120 120 120 80
2.000 120 120 115 80
3.000 120 120 115 75
4.000 120 110 110 75
6.000 105 95 100 55
8.000 95 90 90 50
12.500 - - - -
Patient - operator communication
Input for talk-over microphone
Patient response switch
Available tests
Pure tone audiometry
Auto threshold (modified Hughsone-Westlake)
Calibration
Validity: 12 months
All the parameters set through the device software
Interfacing with the computer
Through USB connection (no need for driver)
Software supplied with Piccolo:
Inventis Daisy with Maestro module
Power supply
12 Mo Warranty
Consumption: 8 Watts (Max)
Power supply: 6V, 1.67A cont., through an external
medical grade 100-240 Vac 50/60 Hz power supply
or through a USB cable
