Comes with these accessories:

1) Hydraulic  Tensile Grip

2) Compression Grip

3) Three Point Bending Grip

4) Laptop loaded with Max Test Software

5) Pad that can operate with the Max Test Software

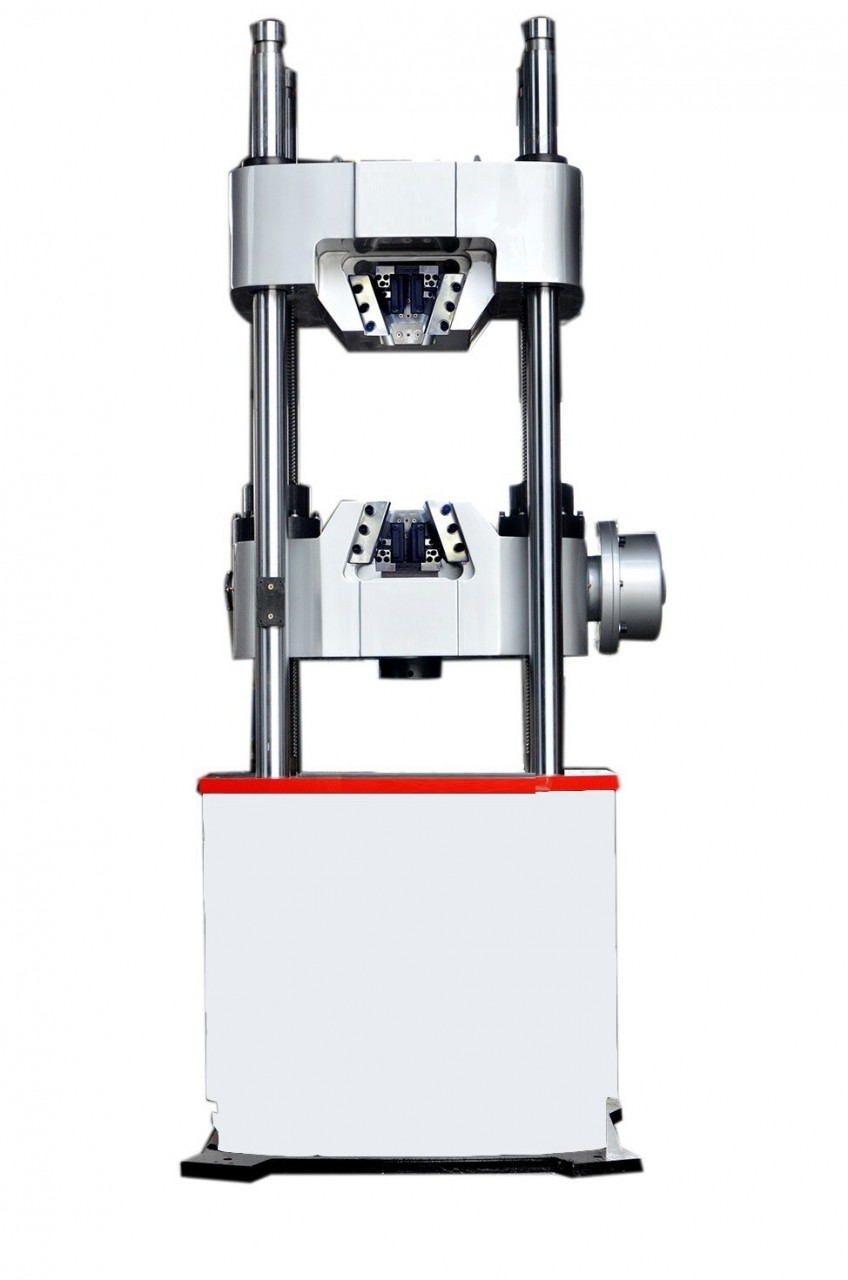

Lab equipment offers an excellent solution for conducting tension and compression tests with test force requirements of up to 2000kN and higher. They apply a controlled tensile force to a specimen until it reaches its breaking point, allowing for the determination of parameters such as tensile strength, yield strength, elongation, and modulus of elasticity. These machines are widely utilized in industrial quality control laboratories and research centers.

It is designed to accommodate various materials, including metals, plastics, ceramics, composites, and more, this series of machines provides the capability to test a broad range of materials.

Some popular standards available:

ASTM D638 Standard Test Method for Tensile Properties of Plastics

ASTM E8/E8M-16: “Standard Test Methods for Tension Testing of Metallic Materials” (2016)

ASTM D 3039/D 3039M: “Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials” Flexible materials

ISO 6892-1: “Metallic materials. Tensile testing. Method of test at ambient temperature”

ISO 7500-1 Metallic materials - Verification of static uniaxial testing machines

Configuration

Moog valve/ Nachi pump/ Celtron Load Cell

Model

UTM-300G

UTM-600G

UTM-1000G

Capacity

300kN/67,443lbf

600kN/ 134,885lbf

1000kN/224,809lbf

Structure

Upper for Tension, Lower for Compression

Ram stroke

255mm

Max. Crosshead Speed

190mm/min

160mm/min

Max. Tensile space

600mm/23.6’’

800mm/31.5’’

Max. Compression space

500mm/19.7’’

700mm/27.56’’

Round Sample

Φ10-Φ20mm, Φ20-Φ32mm,

Φ10-Φ18mm, Φ18-Φ29mm,

Φ29-Φ40mm,

Φ10-Φ18mm, Φ18-Φ29mm,

Φ29-Φ40mm,Φ40-Φ60mm,

Flat Sample

2-13mm,13-25mm

2-16mm,13-30mm

2-16mm,13-30mm,30mm-45mm

Compression Platen

Φ120mm

Φ120mm

180*180mm

Roller Max. Span

400mm

400mm

430mm

Frame Dimension

900×650×2038mm

35.4’’x25.6’’x80.2’’

924x723×2337mm

36.4’’x28.5’’x92.0’’

966x763×2572mm

38.0’’x30.0’’x101.3’’

Pump Station

1200x700x880mm/47.2’’x27.6’’x31.5’’

Weight

1800kg/3968lb

2800kg/6173lb

3500kg/7716lb
