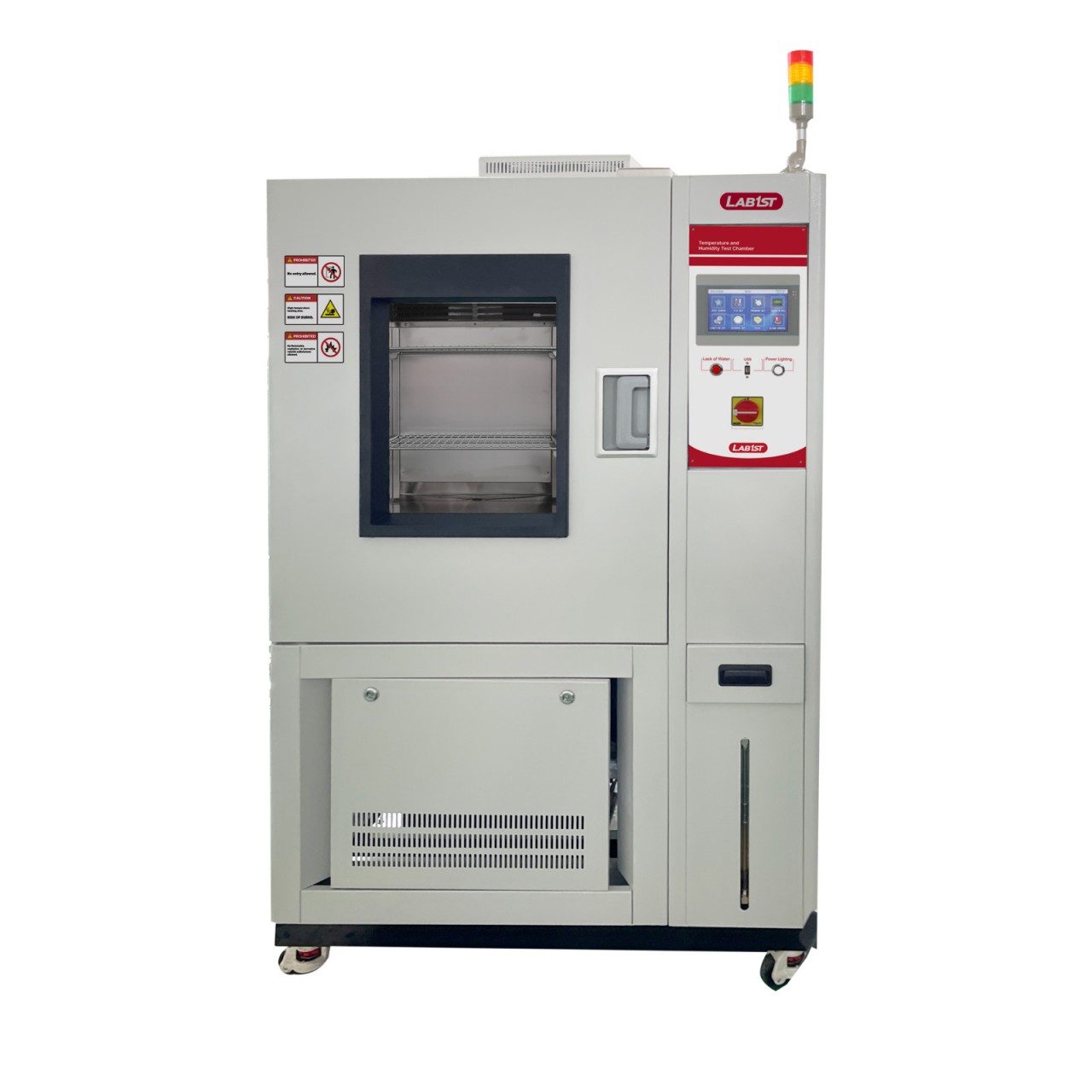

LAB1ST TCH225V-R5 temperature and humidity test chamber is an indispensable piece of high-end equipment for medical, microbiological and biological research, designed to ensure precise control of experimental conditions.With a wide temperature control range covering -70°C to 150°C( Rapid temperature change range: -40℃ to 120℃) and humidity control capability of 20% to 98%, it provides a full range of temperature and humidity stress test environments for samples.

Our environmental test chamber is not only the tool of choice for professionals looking for precise results, but also the ideal configuration for all laboratories with stringent requirements for environmental simulation. The unit is also known as a climatic chamber, dynamic climatic chamber, constant climatic chamber and environmental simulation chamber, reflecting its flexibility in a variety of complex experimental scenarios.This reflects its flexibility and expertise in a variety of complex experimental scenarios.

Of particular importance, our environmental simulation chambers can also be customized for specific needs, ensuring that every study is conducted in the most appropriate environment.

7-inch touch screen with smart PLC program controller.

The chamber is equipped with a standard lighting for easy observation.

Use high-precision electronic humidity and temperature sensor, no maintenance precise control.

Standard refrigeration system pressure gauge, convenient for monitoring refrigeration system status.

Standard 2-inch cable port for easy power-on testing (position, size and quantity can be customized).

Adjustable stainless steel shelves with heavy-duty support rails, freely disassembled to facilitate the cleaning.

Parameter                                   Parameter Value

Temp/Humidity TCH225V-R5

Workspace Volume 225L [7.9 cu.ft]

Temperature Range -70°C~150℃ [94℉~302℉, customizable]

Rapid Temperature Cycling Range -40℃~120℃ [-40°F~ 248°F]

Temperature Fluctuation ±0.5°C

Temperature Uniformity ±1°C

Heating Rate 1 Standard: 3.0-5.0°C/min

Heating Rate 2 Rapid temperature cycling: 5 ℃/min

Cooling Rate 1 Standard: 0.7-1.5°C/min

Cooling Rate 2 Rapid temperature cycling: 5 ℃/min

Humidity Range 20%-98% RH

Humidity Fluctuation ±3%

Humidity Uniformity ±2%-±3% RH

Chamber Material SUS304

Shelf 2 pcs [or more], SUS304 wired plates with support

Max. Shelf Load 10 kg [22 lbs]

Cable Port 50 mm [2 inch]

Control Panel 7 inch industrial color touch screen,temperature and humidity program controller

Communication USB, RS485, and Ethernet

Compressor Brand Germany Secop, French Tecumseh, Germany Blitzer, etc.

Cooling Mode Air-cooled

Humidifier Heavy duty stainless steel 304 electrical heating humidifier

Exterior Dimensions [WxDxH] 47.2*46.1*76.8 in; 1200*1170*1950 mm

Installed Power 12 kw

Electrical Supply 1 208~240V, 3P, 60Hz; 380~400V, 3P, 50Hz

Gross Weight 590 kg |1302 lbs
